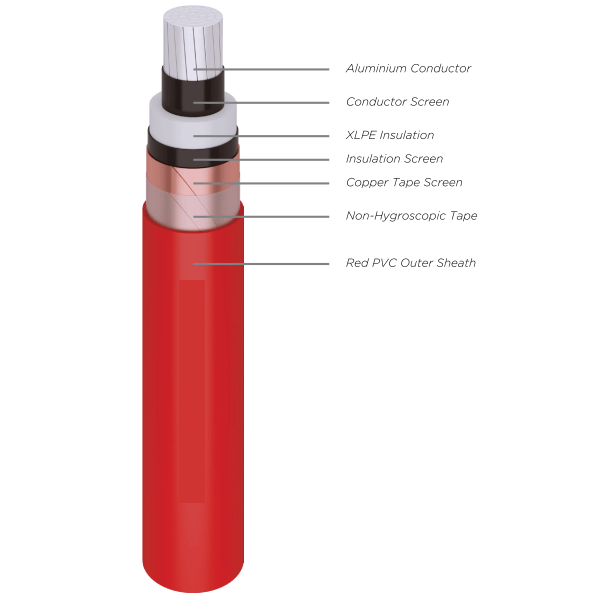

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2
Application :
For power station and switchgear as well as station because of small bending radius in confined spaces indoors. As underground because of light weight where installation conditions are difficult
Special Features on Request :
· Oil Resistance
· UV Resistance
· Flame Retardant Cat. A, B, C
· Flame Retardant Non Category
· Heat Resistance
· Anti Termite
· Anti Rodent
· Low Smoke Zero Halogen
Note = Conductor Shape :
35 – 800 sqmm supplied in compacted circular stranded (cm) conductor shape

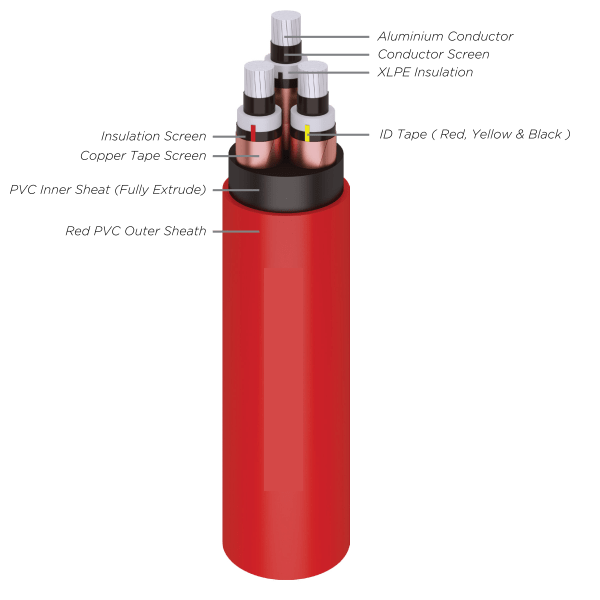

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2
Application :
Indoors, cable trunking, outdoors and in ground; For power stations, industry and switchgear.
Special Features on Request :
· Oil Resistance
· UV Resistance
· Flame Retardant Cat. A, B, C
· Flame Retardant Non Category
· Heat Resistance
· Anti Termite
Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape

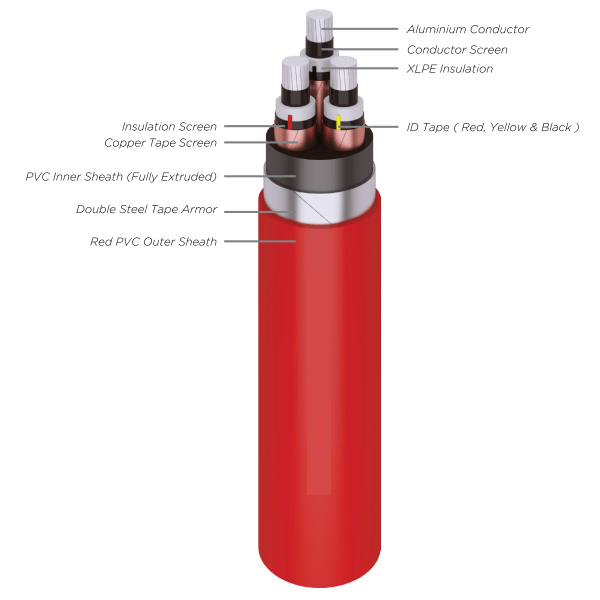

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed, Double Steel Tape Armor, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2
Application :
For installation indoor, in ground direct burried, for power station and switchgear, if there is a risk that low mechanical damage may occur.
Special Features on Request :
· Oil Resistance
· UV Resistance
· Flame Retardant Cat. A, B, C
· Flame Retardant Non Category
· Heat Resistance
· Anti Termite
Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape.

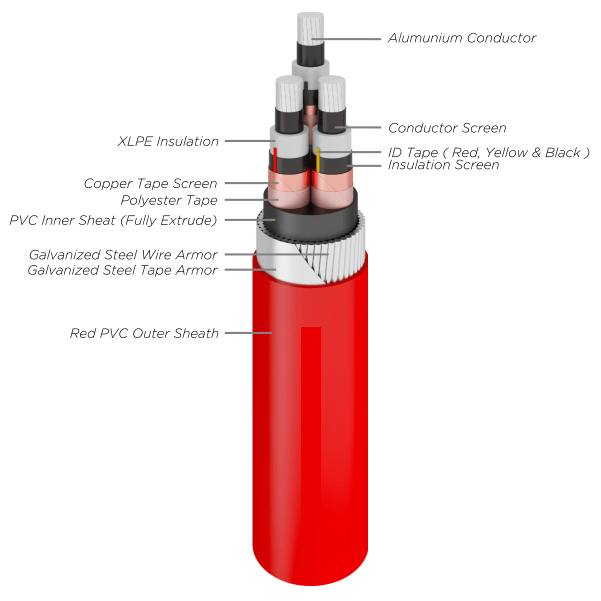

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed, Steel Wire Armor, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2
Application :
For installation indoor, in ground direct burried, for power station and switchgear, if there is a risk that low mechanical damage may occur.
Special Features on Request :
· Oil Resistance
· UV Resistance
· Flame Retardant Cat. A, B, C
· Flame Retardant Non Category
· Heat Resistance
· Anti Termite
Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape.

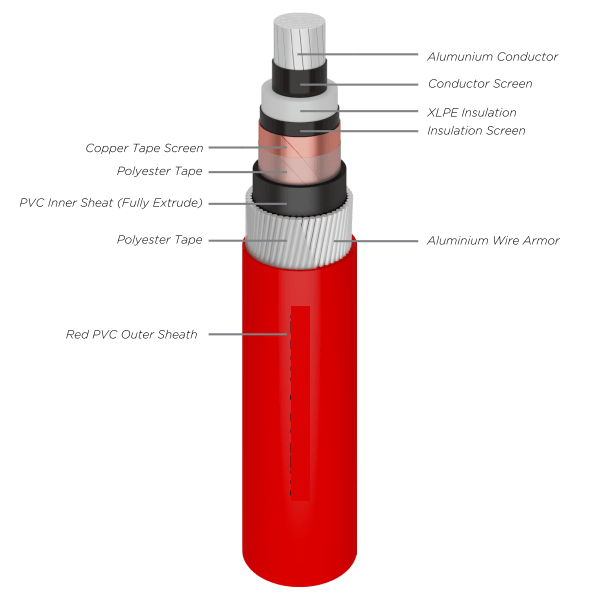

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed, AlumuniumWire Armor, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2
Application :
For installation indoor, in ground direct burried, for power station and switchgear, if there is a risk that low mechanical damage may occur.
Special Features on Request :
· Oil Resistance
· UV Resistance
· Flame Retardant Cat. A, B, C
· Flame Retardant Non Category
· Heat Resistance
· Anti Termite
Note = Conductor Shape :
35 – 630 sqmm supplied in compacted circular stranded (cm) conductor shape

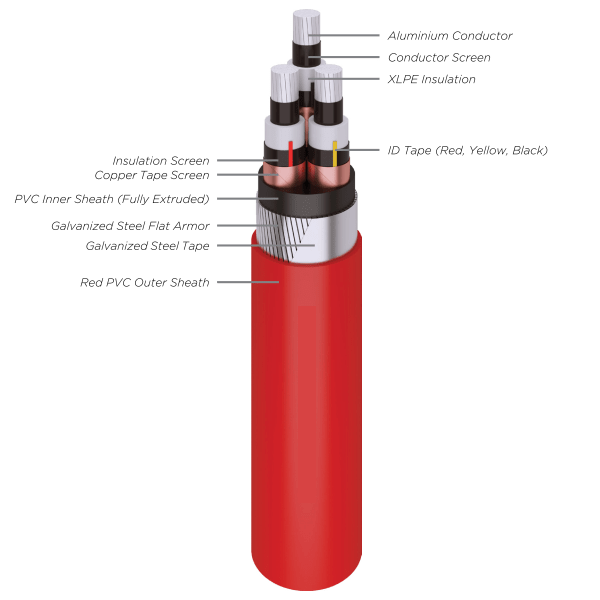

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Inner Sheathed, Galvanized Steel Flat Armor, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2,
Application :
For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
Special Features on Request :
· Oil Resistance
· UV Resistance
· Flame Retardant Cat. A, B, C
· Flame Retardant Non Category
· Heat Resistance
· Anti Termite
Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape

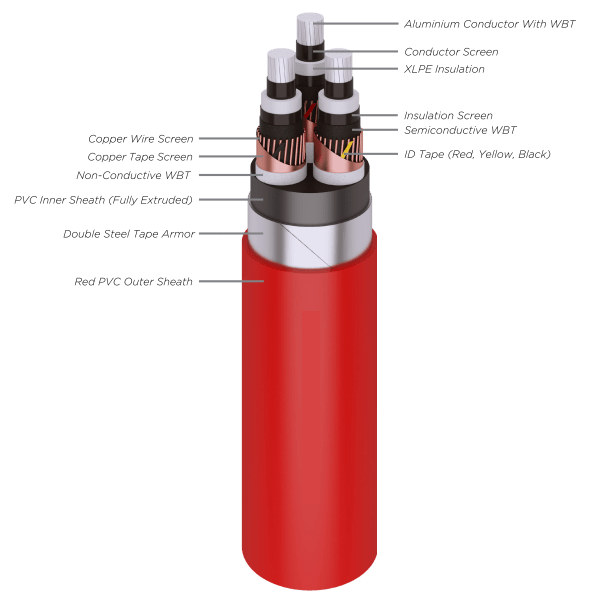

(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Inner Sheathed, Double Steel Tape Armor, PVC Sheathed)
Standard Specification : SPLN 43-5, SNI IEC 60502-2, IEC 60502-2
Application :
For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
Special Features on Request :
· Oil Resistance
· UV Resistance
· Flame Retardant Cat. A, B, C
· Flame Retardant Non Category
· Heat Resistance
· Anti Termite
Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape

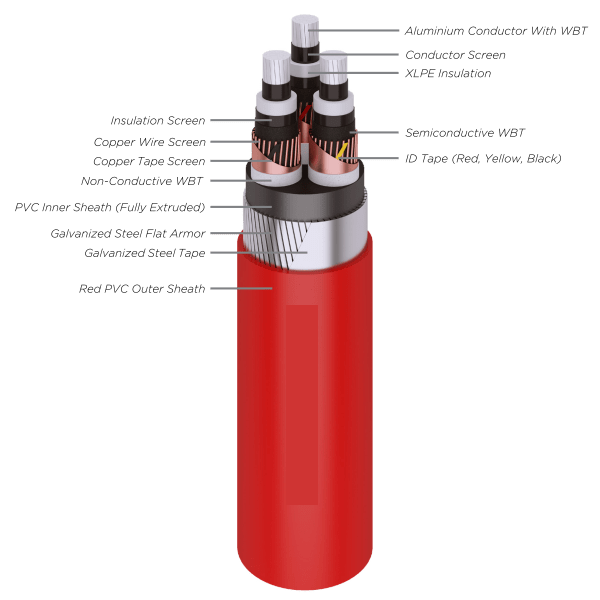

(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Inner Sheathed, Steel Flat Armor, PVC Sheathed)
Standard Specification : SPLN 43-5, SNI IEC 60502-2, IEC 60502-2
Application :
For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
Special Features on Request :
· Oil Resistance
· UV Resistance
· Flame Retardant Cat. A, B, C
· Flame Retardant Non Category
· Heat Resistance
· Anti Termite
Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape
NA2XSY (Al / XLPE / CTS / PVC)
PHYSICAL | PROPERTIES | ELECTRICAL PROPERTIES | ||||||||||||
Rating |
Nom Cross Section Area |
Approx. Overall Diameter |
Approx. Cable Weight | Conductor |
L |
X |
C |
Z |
Max. Current - Carrying Capacity at 30 °C | Max. Short Circuit Current at 1 Second | ||||
Max. DC Resistance at 20 °C | Max. AC Resistance at 90 °C | |||||||||||||
in Air | in Ground | |||||||||||||
mm² | mm | kg/mm | ohm/km | Ohm/km | mH/km | Ohm/km | µF/km | Ohm/km | A | A | kA | |||
3.6/6 (7.2) kV | 1 1 1 1 1 1 1 1 1 1 1 1 1 | x x x x x x x x x x x x x | 35 50 70 95 120 150 185 240 300 400 500 630 800 | 19.60 20.50 22.35 23.80 25.20 26.75 28.27 31.10 33.80 37.58 42.88 46.58 51.28 | 530 591 705 792 1,203 1,055 1,200 1,432 1,730 2,110 2,698 3,268 3,849 | 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.078 0.061 0.047 0.037 | 1.113 0.822 0.568 0.411 0.325 0.265 0.211 0.162 0.130 0.102 0.081 0.064 0.052 | 0.418 0.403 0.379 0.362 0.351 0.343 0.334 0.325 0.321 0.319 0.325 0.316 0.307 | 0.131 0.126 0.119 0.114 0.110 0.108 0.105 0.102 0.101 0.100 0.102 0.099 0.096 | 0.219 0.240 0.282 0.320 0.352 0.382 0.417 0.459 0.479 0.480 0.473 0.528 0.599 | 1.121 0.832 0.581 0.426 0.343 0.286 0.236 0.191 0.164 0.143 0.130 0.118 0.109 | 183 215 266 318 364 410 466 545 620 717 831 953 1076 | 196 229 279 330 374 417 470 541 608 692 787 893 997 | 3.29 4.70 6.58 8.93 11.28 14.10 17.39 22.56 28.20 37.60 47.00 59.22 75.20 |
6/10 (12) kV | 1 1 1 1 1 1 1 1 1 1 1 1 1 | x x x x x x x x x x x x x | 35 50 70 95 120 150 185 240 300 400 500 630 800 | 21.40 22.30 23.95 25.60 27.00 28.75 30.27 32.90 35.00 38.58 43.48 46.98 51.68 | 606 670 753 876 1,291 1,164 1,314 1,542 1,768 2,183 2,749 3,249 3,884 | 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.078 0.061 0.047 0.037 | 1.113 0.822 0.568 0.411 0.325 0.265 0.211 0.161 0.130 0.102 0.081 0.064 0.052 | 0.448 0.431 0.404 0.386 0.373 0.363 0.353 0.340 0.331 0.326 0.328 0.319 0.309 | 0.141 0.135 0.127 0.121 0.117 0.114 0.111 0.107 0.104 0.102 0.103 0.100 0.097 | 0.182 0.199 0.232 0.261 0.286 0.310 0.337 0.379 0.416 0.441 0.455 0.508 0.576 | 1.122 0.833 0.582 0.428 0.345 0.288 0.238 0.194 0.166 0.144 0.131 0.119 0.110 | 187 221 271 325 371 417 473 552 624 720 832 953 1078 | 198 232 281 333 377 419 472 543 609 693 787 893 998 | 3.29 4.70 6.58 8.93 11.28 14.10 17.39 22.56 28.20 37.60 47.00 59.22 75.20 |
8.7/15 (17.5) kV | 1 1 1 1 1 1 1 1 1 1 1 1 1 | x x x x x x x x x x x x x | 35 50 70 95 120 150 185 240 300 400 500 630 800 | 23.40 24.30 26.15 27.80 29.40 30.95 32.67 35.10 37.20 40.78 45.68 49.18 54.08 | 671 736 857 986 1,419 1,288 1,458 1,642 1,909 2,340 2,922 3,431 4,107 | 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.078 0.061 0.047 0.037 | 1.113 0.822 0.568 0.411 0.325 0.265 0.211 0.161 0.130 0.102 0.081 0.063 0.051 | 0.480 0.461 0.432 0.411 0.397 0.386 0.375 0.360 0.350 0.342 0.342 0.332 0.321 | 0.151 0.145 0.136 0.129 0.125 0.121 0.118 0.113 0.110 0.107 0.107 0.104 0.101 | 0.154 0.168 0.194 0.217 0.237 0.256 0.277 0.311 0.340 0.363 0.380 0.423 0.477 | 1.123 0.835 0.584 0.430 0.348 0.291 0.242 0.197 0.170 0.148 0.134 0.122 0.113 | 192 226 278 333 379 425 482 560 634 731 843 965 1090 | 200 234 284 336 379 422 475 546 613 697 792 899 1004 | 3.29 4.70 6.58 8.93 11.28 14.10 17.39 22.56 28.20 37.60 47.00 59.22 75.20 |
12/20 (24) kV | 1 1 1 1 1 1 1 1 1 1 1 1 1 | x x x x x x x x x x x x x | 35 50 70 95 120 150 185 240 300 400 500 630 800 | 25.40 26.30 28.15 30.00 31.60 33.15 34.67 37.10 39.40 42.98 47.88 51.38 56.08 | 764 832 959 1,106 1,545 1,422 1,544 1,770 2,063 2,509 3,109 3,626 4,293 | 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.078 0.061 0.047 0.037 | 1.113 0.822 0.568 0.411 0.325 0.265 0.211 0.161 0.130 0.102 0.080 0.063 0.051 | 0.506 0.486 0.454 0.433 0.417 0.405 0.393 0.376 0.365 0.356 0.355 0.343 0.332 | 0.159 0.153 0.143 0.136 0.131 0.127 0.123 0.118 0.115 0.112 0.111 0.108 0.104 | 0.138 0.149 0.171 0.191 0.207 0.223 0.241 0.270 0.294 0.315 0.333 0.369 0.416 | 1.124 0.836 0.586 0.432 0.350 0.294 0.244 0.200 0.173 0.151 0.137 0.125 0.116 | 197 231 284 339 385 432 488 568 642 739 851 974 1101 | 202 236 286 338 381 425 477 550 616 700 796 903 1010 | 3.29 4.70 6.58 8.93 11.28 14.10 17.39 22.56 28.20 37.60 47.00 59.22 75.20 |
18/30 (36) kV | 1 1 1 1 1 1 1 1 1 1 1 1 1 | x x x x x x x x x x x x x | 35 50 70 95 120 150 185 240 300 400 500 630 800 | 30.60 31.70 33.55 35.40 36.80 38.35 39.87 42.50 44.80 48.18 53.08 56.78 61.48 | 1,040 1,127 1,269 1,433 1,868 1,723 1,892 2,157 2,470 2,877 3,512 4,136 4,843 | 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.078 0.061 0.047 0.037 | 1.113 0.822 0.568 0.411 0.325 0.265 0.211 0.161 0.129 0.102 0.080 0.063 0.051 | 0.561 0.540 0.504 0.479 0.461 0.447 0.433 0.414 0.400 0.389 0.384 0.370 0.356 | 0.176 0.169 0.158 0.150 0.145 0.140 0.136 0.130 0.126 0.122 0.120 0.116 0.112 | 0.112 0.120 0.137 0.151 0.163 0.175 0.187 0.208 0.225 0.243 0.259 0.286 0.320 | 1.127 0.839 0.590 0.437 0.356 0.299 0.251 0.207 0.180 0.159 0.145 0.132 0.123 | 207 242 296 352 400 446 505 585 660 757 870 995 1124 | 206 240 290 343 387 430 483 556 623 707 803 912 1021 | 3.29 4.70 6.58 8.93 11.28 14.10 17.39 22.56 28.20 37.60 47.00 59.22 75.20 |
