Aerial distribution of energy in medium tension. Transformer feeders,power plants, industrial and maneuvering facilities, in places where can not run the laying of underground networks, mining facilities, areas urban with trees or with little space.
IEC 60502-2,IEC 60228, IEC60332-1 , ASTM A 475 etc.

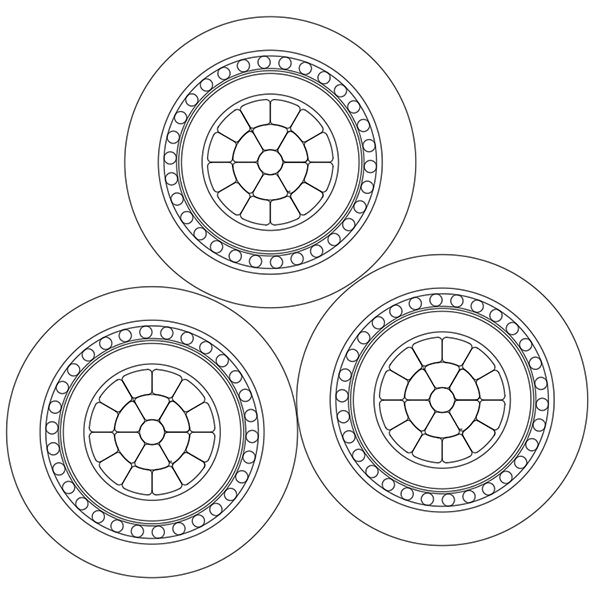

Conductor: Stranded compacted circular aluminium conductor to IEC60228 class 2
Conductor Screen: Extruded semi-conductive compound
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Insulation Screen: Extruded semi-conductive compound
Metallic Screen: Aluminium tape.
Sheath: Linear low density polyethylene LLDPE-UV.
Messenger conductor: Stranded galvanized steel wire.
Messenger insulation: Linear low density polyethylene LLDPE-UV.
The product is suitable for power transmission and distribution lines with rated power frequency voltage 6kV～30 kV.
| Conductor | Approx. OD. mm | Messenger Conductor (EHS) | Approx. Weight kg/km | ||||
| Number of Cores x Nominal Cross Section No.×mm² | No.of wires (Min) No. | Nom. Diameter of Conductor mm | Stranding No.×mm | Diameter Messenger Conductor mm | Minimum breaking load kN | ||
| 3X1X25 | 6 | 5.9 | 42.4 | 7×2.64 | 7.92 | 49.82 | 1562 |
| 3X1X35 | 6 | 6.9 | 44.6 | 7×2.64 | 7.92 | 49.82 | 1714 |
| 3X1X50 | 6 | 8.1 | 47.2 | 7×2.64 | 7.92 | 49.82 | 1908 |
| 3X1X70 | 12 | 9.8 | 50.8 | 7×2.64 | 7.92 | 49.82 | 2200 |
| 3X1X95 | 15 | 11.4 | 54.3 | 7×3.68 | 11.04 | 92.82 | 2855 |
| 3X1X120 | 15 | 12.8 | 57.3 | 7×3.68 | 11.04 | 92.82 | 3153 |
| 3X1X150 | 15 | 14.4 | 61.2 | 7×3.68 | 11.04 | 92.82 | 3523 |
| 3X1X185 | 30 | 16 | 64.6 | 7×3.68 | 11.04 | 92.82 | 3933 |
| 3X1X240 | 30 | 18.4 | 70.2 | 7×3.68 | 11.04 | 92.82 | 4611 |
| Conductor | Approx. OD. mm | Messenger Conductor (EHS) | Approx. Weight kg/km | ||||
| Number of Cores x Nominal Cross Section No.×mm² | No.of wires (Min) No. | Nom. Diameter of Conductor mm | Stranding No.×mm | Diameter Messenger Conductor mm | Minimum breaking load kN | ||
| 3X1X25 | 6 | 5.9 | 47.2 | 7×2.64 | 7.92 | 49.82 | 1799 |
| 3X1X35 | 6 | 6.9 | 49.3 | 7×2.64 | 7.92 | 49.82 | 1962 |
| 3X1X50 | 6 | 8.1 | 51.9 | 7×2.64 | 7.92 | 49.82 | 2168 |
| 3X1X70 | 12 | 9.8 | 55.6 | 7×2.64 | 7.92 | 49.82 | 2477 |
| 3X1X95 | 15 | 11.4 | 59 | 7×3.68 | 11.04 | 92.82 | 3149 |
| 3X1X120 | 15 | 12.8 | 62.5 | 7×3.68 | 11.04 | 92.82 | 3490 |
| 3X1X150 | 15 | 14.4 | 65.9 | 7×3.68 | 11.04 | 92.82 | 3851 |
| 3X1X185 | 30 | 16 | 69.8 | 7×3.68 | 11.04 | 92.82 | 4308 |
| 3X1X240 | 30 | 18.4 | 75.4 | 7×3.68 | 11.04 | 92.82 | 5016 |
| Conductor | Approx. OD. mm | Messenger Conductor (EHS) | Approx. Weight kg/km | ||||
| Number of Cores x Nominal Cross Section No.×mm² | No.of wires (Min) No. | Nom. Diameter of Conductor mm | Stranding No.×mm | Diameter Messenger Conductor mm | Minimum breaking load kN | ||
| 3X1X35 | 6 | 6.9 | 54.1 | 7×3.00 | 9 | 64.36 | 2337 |
| 3X1X50 | 6 | 8.1 | 56.7 | 7×3.00 | 9 | 64.36 | 2555 |
| 3X1X70 | 12 | 9.8 | 60.3 | 7×3.00 | 9 | 64.36 | 2883 |
| 3X1X95 | 15 | 11.4 | 64.2 | 7×3.00 | 9 | 64.36 | 3277 |
| 3X1X120 | 15 | 12.8 | 67.6 | 7×3.00 | 9 | 64.36 | 3636 |
| 3X1X150 | 15 | 14.4 | 71.1 | 7×3.00 | 9 | 64.36 | 4015 |
| 3X1X185 | 30 | 16 | 75 | 7×3.00 | 9 | 64.36 | 4493 |
| 3X1X240 | 30 | 18.4 | 80.1 | 7×3.00 | 9 | 64.36 | 5196 |
| Conductor | Approx. OD. mm | Messenger Conductor (EHS) | Approx. Weight kg/km | ||||
| Number of Cores x Nominal Cross Section No.×mm² | No.of wires (Min) No. | Nom. Diameter of Conductor mm | Stranding No.×mm | Diameter Messenger Conductor mm | Minimum breaking load kN | ||
| 3X1X35 | 6 | 6.9 | 54.1 | 7×3.00 | 9 | 64.36 | 2337 |
| 3X1X50 | 6 | 8.1 | 67.9 | 7×2.64 | 7.92 | 49.82 | 3208 |
| 3X1X70 | 12 | 9.8 | 71.5 | 7×2.64 | 7.92 | 49.82 | 3577 |
| 3X1X95 | 15 | 11.4 | 75.4 | 7×3.68 | 11.04 | 92.82 | 4339 |
| 3X1X120 | 15 | 12.8 | 78.4 | 7×3.68 | 11.04 | 92.82 | 4703 |
| 3X1X150 | 15 | 14.4 | 82.3 | 19×2.86 | 14.29 | 149.9 | 5571 |
| 3X1X185 | 30 | 16 | 86.2 | 19×2.86 | 14.29 | 149.9 | 6093 |
| 3X1X240 | 30 | 18.4 | 91.3 | 19×2.86 | 14.29 | 149.9 | 6854 |
