456.4 MCM Cairo AAAC All Aluminum Alloy 6201 Conductor

AAAC Cairo Applications

AAAC – All Aluminum Alloy Conductor is used for primary and secondary overhead transmission and distribution services. This has been designed utilizing a high-strength aluminum alloy to achieve a high strength-to weight ratio and better sag characteristic. The conductor has a higher resistance to corrosion than ACSR.

Cairo Bare Aluminum Aaac 6201 Alloy Also Known As

465.4 cairo all aluminum alloy conductor, 465.4 cairo cable aaac, 465.4 cairo aluminum alloy cable, 465.4 cairo abrasive resistant cable, 465.4 cairo electric meter wiring, 465.4 cairo transmission overhead, 465.4 cairo burying electric cable, 465.4 cairo utility pole ground wire, 465.4 cairo overhead power line components.

Standards

• ASTM B-398 Aluminum-Alloy 6201-T81 and 6201-T83 Wire
  for Electrical Purposes
• ASTM B-399 Concentric-Lay-Stranded Aluminum Alloy 6201-T81 Conductors
• Requirements of the National Electrical Code
• RUS accepted

Construction

Conductors:

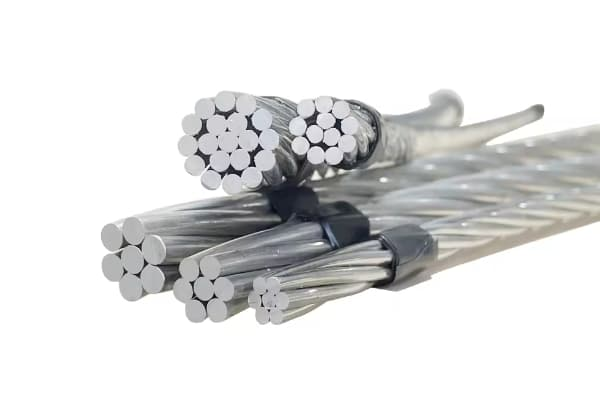

Stranded 6201-T81 high strength aluminum conductors, conforming to ASTM specifications B399 are concentric-lay-stranded, similar in construction and appearance to 1350 aluminum alloy grade aluminum conductors, and has a greater resistance to abrasion than conductors of 1350 aluminum alloy

Specifications:

• Size KCM: 465.4

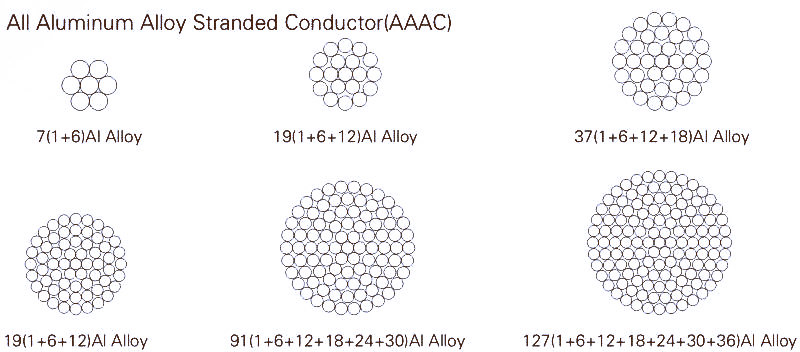

• Stranding: 19

• Approx. EC Cond. with Equivalent Resistance: 397.5

• Diameter Inches: Indiv. Wire O.D: 0.1565

• Diameter Inches: Comp. Cable: 0.7830

• Cross Sectional Area (sq. inches): 0.3655

• New Weight lb/1000FT: 436.9

• Rated Strength (lbs.): 15,600

• Ampacity: 590 Amps
