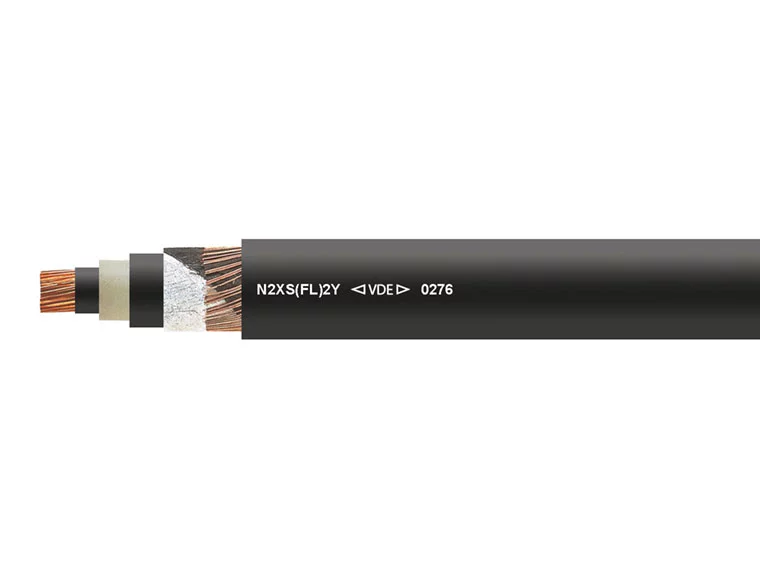

N2XS2Y, N2XS(F)2Y & N2XS(FL)2Y Cable
N2XS2Y, N2XS(F)2Y & N2XS(FL)2Y Cable
N2XS2Y Cable Manufacturer Standards
N2XS(F)2Y and N2XS(FL)2Y Waterblocked Cable Specifications
N2XS2Y / N2XS(F)2Y / N2XS(FL)2Y voltage rating
The standard voltage rating for this range is as follows:
6/10 (12)kV – Test Voltage 21kV
8.7/15 (17.5)kV – Test Voltage 30.45kV
12/20 (24)kV – Test Voltage 42kV
18/30 (36)kV – Test Voltage 63kV
N2XS2Y Cable specification support
Balancing the demands of the the system design alongside those of the installation and the environmental conditions is essential for delivering operational longevity. Support with specification can be sought from our technical team, whilst the datasheets will provide dimensional and electrical details to aid decision-making.
Consideration may also be given to the aluminium equivalent, NA2XS2Y, which is often used on installations without space restrictions, again with waterblocked variations also available.
Contact the team on by phone or by email to discuss your requirements further.
N2XS2Y, N2XS(F)2Y & N2XS(FL)2Y Construction Table
 N2XS2Y XLPE PE - 6/10 (12)KV CABLE |  N2XS(F)2Y XLPE PE - 6/10 (12)KV CABLE | N2XS(FL)2Y XLPE PE - 6/10 (12)KV CABLE | |
|---|---|---|---|
| CONDUCTOR | Class 2 Stranded Copper | ||
| INNER SEMI-CONDUCTIVE LAYER | Semi-Conductive Material | ||
| INSULATION | XLPE (Cross-Linked Polyethylene) | ||
| OUTER SEMI-CONDUCTIVE LAYER | Semi-Conductive Material | ||
| TAPE | - | Swellable Tape - Longitudinal | |
| SCREEN | Copper Wires and Tape | ||
| TAPE 2 | - | Swellable Tape - Longitudinal | |
| TAPE 3 | - | Aluminium Foil Tape Tightly Bonded to Sheath - Radial | |
| OUTER SHEATH | PE (Polyethylene) | ||
