Aerial Bundled Cable ACSR Conductor Rabbit Hare for Botswana
2025-08-06 16:04
Request for quote
1. Aerial Bundled Cable 3x50mm² + 54.6mm²:5000M
2. Aerial Bundled Cable 3x95mm² + 95mm²:2000M
3. ACSR Conductor Rabbit: 50,000M
4. ACSR Conductor Hare: 20,000M

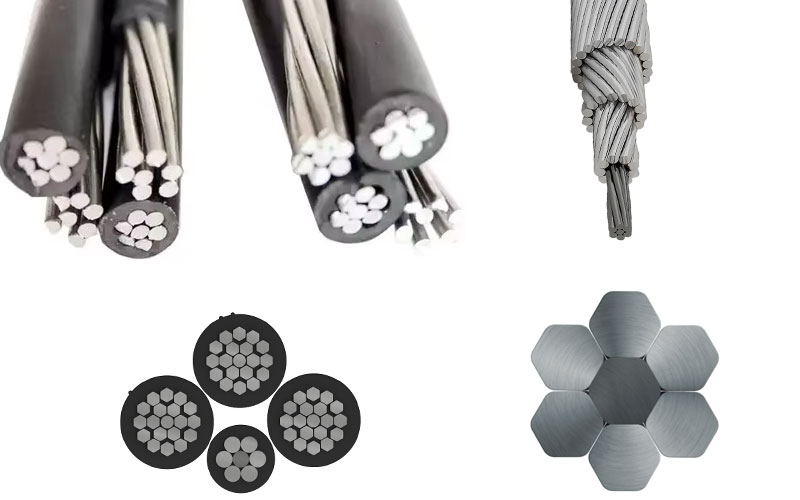

Aluminium conductor power cable overhead
1. Aerial Bundled Cable (ABC):
ABC cables are a modern approach to overhead power distribution, offering improved safety and reliability compared to traditional bare conductors.
They consist of multiple insulated phase conductors bundled together, which reduces the risk of short circuits and electrical hazards.
The messenger wire (often ACSR) provides mechanical support and acts as a neutral conductor.
2. Aluminum Conductor Steel Reinforced (ACSR):
ACSR is a specific type of overhead conductor known for its high strength and ability to handle long spans.
It features a core of steel wires surrounded by layers of aluminum wires.
The steel core provides the necessary tensile strength, while the aluminum layers offer good electrical conductivity.
We Can Supply Overhead Aluminium Conductor Power Cable
1. Aerial Bundled Cable 3x50mm² + 54.6mm²:5000M
2. Aerial Bundled Cable 3x95mm² + 95mm²:2000M
3. ACSR Conductor Rabbit: 50,000M
4. ACSR Conductor Hare: 20,000M
Part of ACSR BS Standard
| Code name | Area | Stranding | Approx. overall diameter | Weight | Rated strength | Max. DC resistance at 20ºC | ||||||
| Nominal alumi. | Alumi. | Steel | Total | Alumi. | Steel | Alumi. | Steel | Total | ||||
| mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | kN | Ω/km | |
| Mole | 10 | 10.62 | 1.77 | 12.39 | 6/1.50 | 1/1.50 | 4.50 | 29 | 14 | 43 | 4.14 | 2.076 |
| Squirrel | 20 | 20.94 | 3.49 | 24.43 | 6/2.11 | 1/2.11 | 6.33 | 58 | 27 | 85 | 7.88 | 1.368 |
| Gopher | 25 | 26.25 | 4.37 | 30.62 | 6/2.36 | 1/2.36 | 7.08 | 72 | 34 | 106 | 9.61 | 1.093 |
| Weasel | 30 | 31.61 | 5.27 | 36.88 | 6/2.59 | 1/2.59 | 7.77 | 87 | 41 | 128 | 11.45 | 0.9077 |
| Fox | 35 | 36.66 | 6.11 | 42.77 | 6/2.79 | 1/2.79 | 8.37 | 101 | 48 | 149 | 13.20 | 0.7822 |
| Ferret | 40 | 42.41 | 7.07 | 49.48 | 6/3.00 | 1/3.00 | 9.00 | 117 | 55 | 172 | 15.20 | 0.6766 |
| Rabbit | 50 | 52.88 | 8.82 | 61.70 | 6/3.35 | 1/3.35 | 10.05 | 145 | 69 | 214 | 18.35 | 0.5426 |
| Mink | 60 | 63.18 | 10.53 | 73.71 | 6/3.66 | 1/3.66 | 10.98 | 173 | 82 | 255 | 21.80 | 0.4545 |
| Skunk | 60 | 63.27 | 36.93 | 100.30 | 12/2.59 | 7/2.59 | 12.95 | 175 | 290 | 465 | 53.00 | 0.4567 |
| Beaver | 70 | 74.82 | 12.47 | 87.29 | 6/3.99 | 1/3.99 | 11.97 | 205 | 97 | 302 | 25.70 | 0.3825 |
| Horse | 70 | 73.37 | 42.80 | 116.17 | 12/2.79 | 7/2.79 | 13.95 | 203 | 335 | 538 | 61.20 | 0.3936 |
| Racoon | 75 | 79.20 | 13.20 | 92.40 | 6/4.10 | 1/4.10 | 12.30 | 217 | 103 | 320 | 27.20 | 0.3622 |
| Otter | 80 | 83.88 | 13.98 | 97.86 | 6/4.22 | 1/4.22 | 12.66 | 230 | 109 | 339 | 28.80 | 0.3419 |
| Cat | 90 | 95.40 | 15.90 | 111.30 | 6/4.50 | 1/4.50 | 13.50 | 262 | 124 | 386 | 32.70 | 0.3007 |
| Hare | 100 | 105.00 | 17.50 | 122.50 | 6/4.72 | 1/4.72 | 14.16 | 288 | 137 | 425 | 36.00 | 0.2733 |
| Dog | 100 | 105.00 | 13.50 | 118.50 | 6/4.72 | 7/1.57 | 14.15 | 288 | 106 | 394 | 32.70 | 0.2733 |
| Hyena | 100 | 105.80 | 20.44 | 126.20 | 7/4.39 | 7/1.93 | 14.57 | 290 | 160 | 450 | 40.90 | 0.2712 |
| Leopard | 125 | 131.30 | 16.80 | 148.10 | 6/5.28 | 7/1.75 | 15.81 | 360 | 132 | 492 | 40.70 | 0.2184 |
| Coyote | 125 | 132.10 | 20.10 | 152.20 | 26/0.54 | 7/1.91 | 15.89 | 365 | 157 | 522 | 46.40 | 0.2187 |
| Cougar | 125 | 130.30 | 7.25 | 137.50 | 18/3.05 | 1/3.05 | 15.25 | 362 | 57 | 419 | 29.80 | 0.2189 |
| Tiger | 125 | 131.10 | 30.60 | 161.70 | 30/2.36 | 7/2.36 | 16.52 | 362 | 240 | 602 | 58.00 | 0.2202 |
| Wolf | 150 | 158.00 | 36.90 | 194.90 | 30/2.59 | 7/2.59 | 18.13 | 437 | 289 | 726 | 69.20 | 0.1828 |
| Dingo | 150 | 158.70 | 8.80 | 167.50 | 18/3.35 | 1/3.35 | 16.75 | 437 | 69 | 506 | 35.70 | 0.1815 |
| Lynx | 175 | 183.40 | 42.80 | 226.20 | 30/2.79 | 7/2.79 | 19.53 | 507 | 335 | 842 | 79.80 | 0.1576 |
| Caracal | 175 | 184.20 | 10.30 | 194.50 | 18/3.61 | 1/3.61 | 18.05 | 507 | 80 | 587 | 41.10 | 0.1563 |
| Panther | 200 | 212.00 | 49.50 | 261.50 | 30/3.00 | 7/3.00 | 21.00 | 586 | 388 | 974 | 92.25 | 0.1363 |
| Lion | 225 | 238.50 | 55.60 | 294.20 | 30/3.18 | 7/3.18 | 22.26 | 659 | 436 | 1095 | 109.60 | 0.1212 |
| Bear | 250 | 264.00 | 61.60 | 325.60 | 30/3.35 | 7/3.35 | 23.45 | 730 | 483 | 1213 | 111.10 | 0.1093 |
| Goat | 300 | 324.30 | 75.70 | 400.00 | 30/3.71 | 7/3.71 | 25.97 | 896 | 593 | 1489 | 135.70 | 0.0891 |
| Sheep | 350 | 374.10 | 87.30 | 461.40 | 30/3.99 | 7/3.99 | 27.93 | 1034 | 684 | 1718 | 155.90 | 0.07704 |
| Antelope | 350 | 373.10 | 48.40 | 421.50 | 54/2.97 | 7/2.97 | 26.73 | 1032 | 379 | 1411 | 118.20 | 0.07727 |
| Bison | 350 | 381.80 | 49.50 | 431.30 | 54/3.00 | 7/3.00 | 27.00 | 1056 | 388 | 1444 | 120.90 | 0.07573 |
| Jaguar | 200 | 210.60 | 11.70 | 222.30 | 18/3.86 | 1/3.86 | 19.30 | 580 | 91 | 671 | 46.55 | 0.13670 |
| Deer | 400 | 429.30 | 100.20 | 529.50 | 30/4.27 | 7/4.27 | 29.89 | 1186 | 785 | 1971 | 178.50 | 0.06726 |
| Zebra | 400 | 428.90 | 55.60 | 484.50 | 54.3.18 | 7/3.18 | 28.62 | 1186 | 435 | 1621 | 131.90 | 0.06740 |
| Elk | 450 | 477.00 | 111.30 | 588.30 | 30/4.50 | 7/4.50 | 31.50 | 1318 | 872 | 2190 | 198.20 | 0.06056 |
| Camel | 450 | 475.20 | 61.60 | 536.80 | 54/3.35 | 7/3.35 | 30.15 | 1314 | 483 | 1797 | 145.70 | 0.06073 |
| Moose | 500 | 528.70 | 68.50 | 597.20 | 54/3.53 | 7/3.53 | 31.77 | 1462 | 537 | 1999 | 161.10 | |
